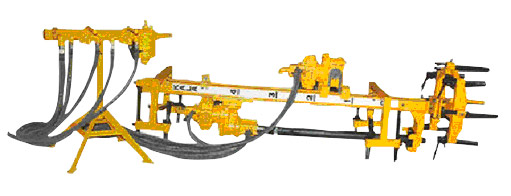

Slim Drill/LD 4
Our company has been able to mark its strong presence in the market as one of the well equipped manufacturers, suppliers and exporters. Quality is the prime focus of our company. Our manufactured product is highly appreciated by our valuable clients due to trouble free drilling operations, long working life and robust construction.
Further Details
These KALA Light drill/Slim Drills Model – KLD – 4 have an effective down the hole hammer that can drill holes of diameter 76 to 115 diameter in vertical and horizontal directions. Moreover, it drills the hole with a depth of 25m in Marble and Granite Query to pass diamond wire rope through the holes.
Salient Features
Lightweight unit
DTH drilling of 76 – 115mm holes
Easy to anchor and stable to operate simple to set up
Heavy duty rotation motor with less oil consumption
Technical Data
| Specification | KLD – 4 | KDH – 4 |
|---|---|---|
| Feed Mast length | 2600 mm | 2700 mm |
| Feed travel | 2000 mm | 2000 mm |
| Drill tube dimensions | 60 mm x 1200 mm | 73 mm x 1200 mm |
| Drill hole diameter | 76 mm to 115 mm | 115 mm |
| Depth | 25 mtrs | 30 mts |
Air Motor Details
Rotation Motor
| Specification | KLD – 4 | KDH – 4 |
|---|---|---|
| Horse Power | 4.5 HP | 4.5 HP |
| Gear Box Ratio | 1 : 30 | 1 : 30 |
| R.P.M. | 0 – 50 | 0 – 50 |
| Air Consumption | 65 CFM at 100 P.S.I. | 65 CFM at 100 P.S.I |
Winch Motor
| Specification | KLD – 4 | KDH – 4 |
|---|---|---|
| Horse Power | 4.5 HP | 4.5 HP |
| Gear Box Ratio | 1 : 46.6 | 1 : 46.6 |
| RPM | 0 – 30 | 0 – 30 |
| Pull up & pull down | 2800 kg | 2800 kg |
| Air consumption | 65 CFM at 100 P.S.I | 65 CFM at 100 P.S.I |
